Overview #

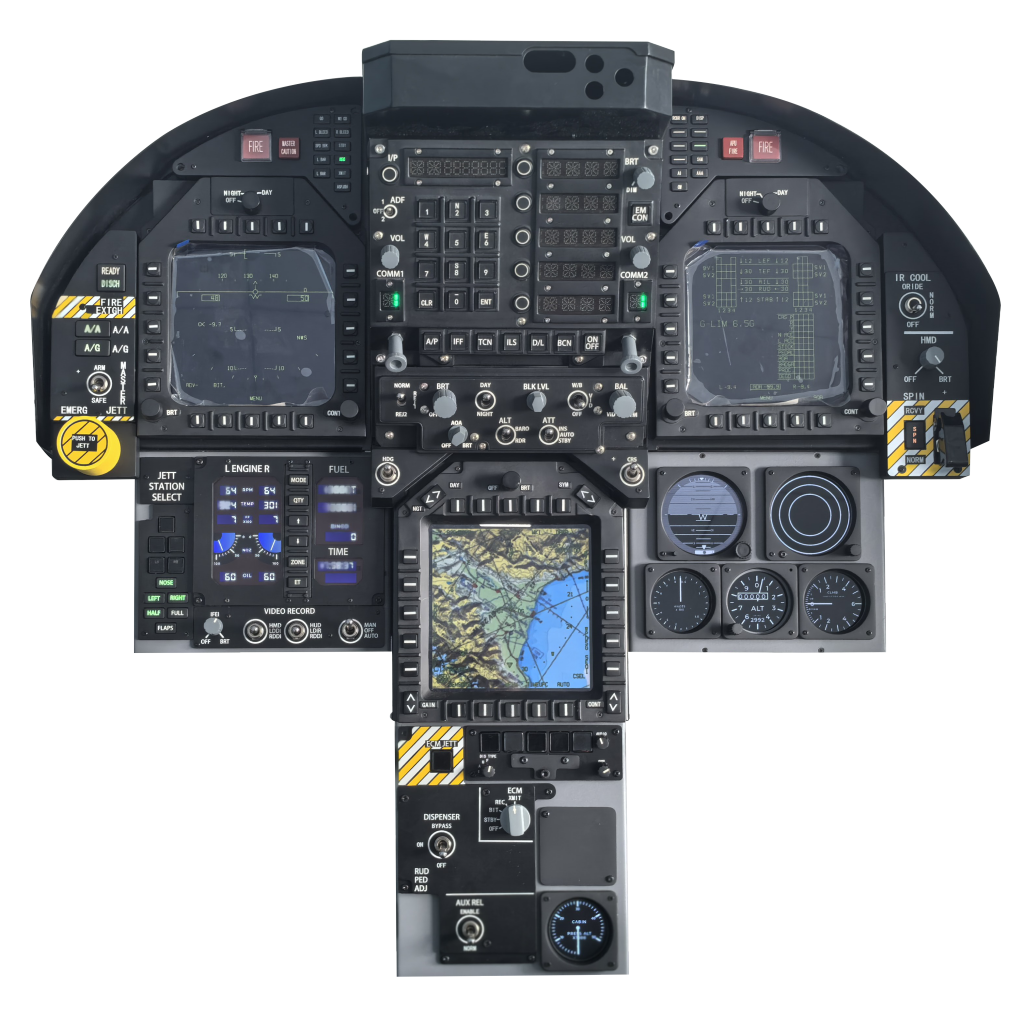

The Wefly FA-18C Main Instruments Panel (MIP) mainly includes one AMPCD, two DDIs, one UFC, one HUD controller, the master caution light, left and right caution/advisory lights, the IFEI (Integrated Fuel/Engine Indicator), the standby instrument group and the lower console instrument group.
Dimensions & Mounting #

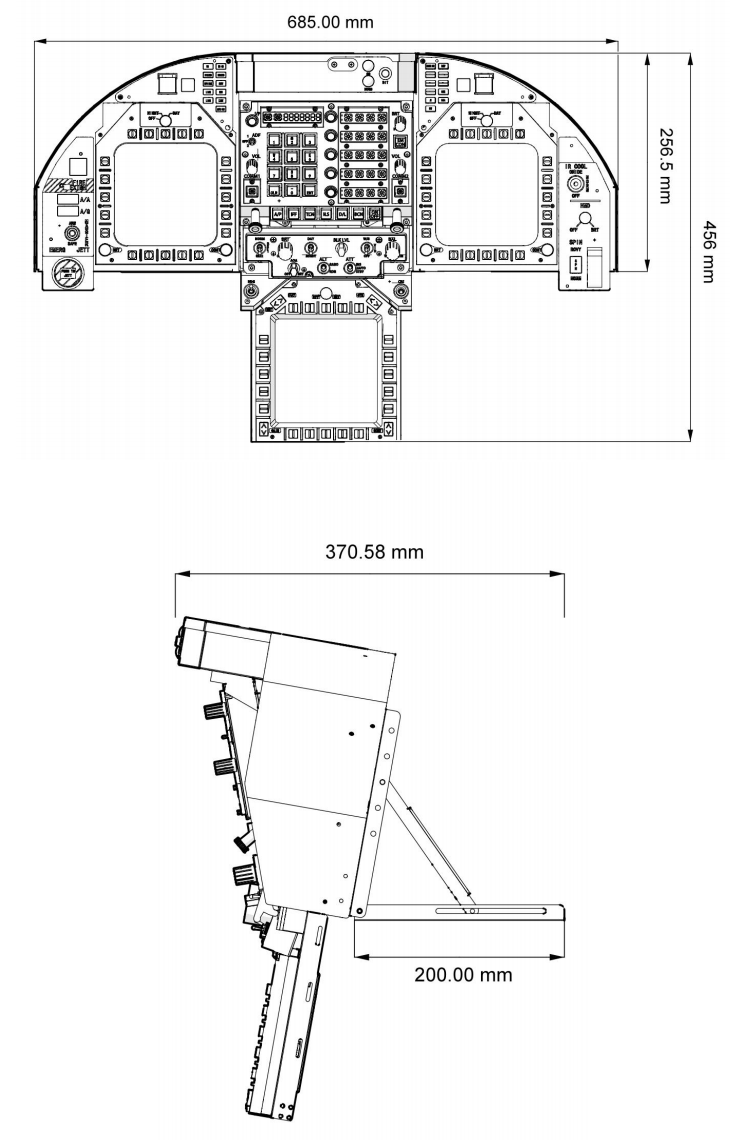

FA-18C MIP (Simplified) #

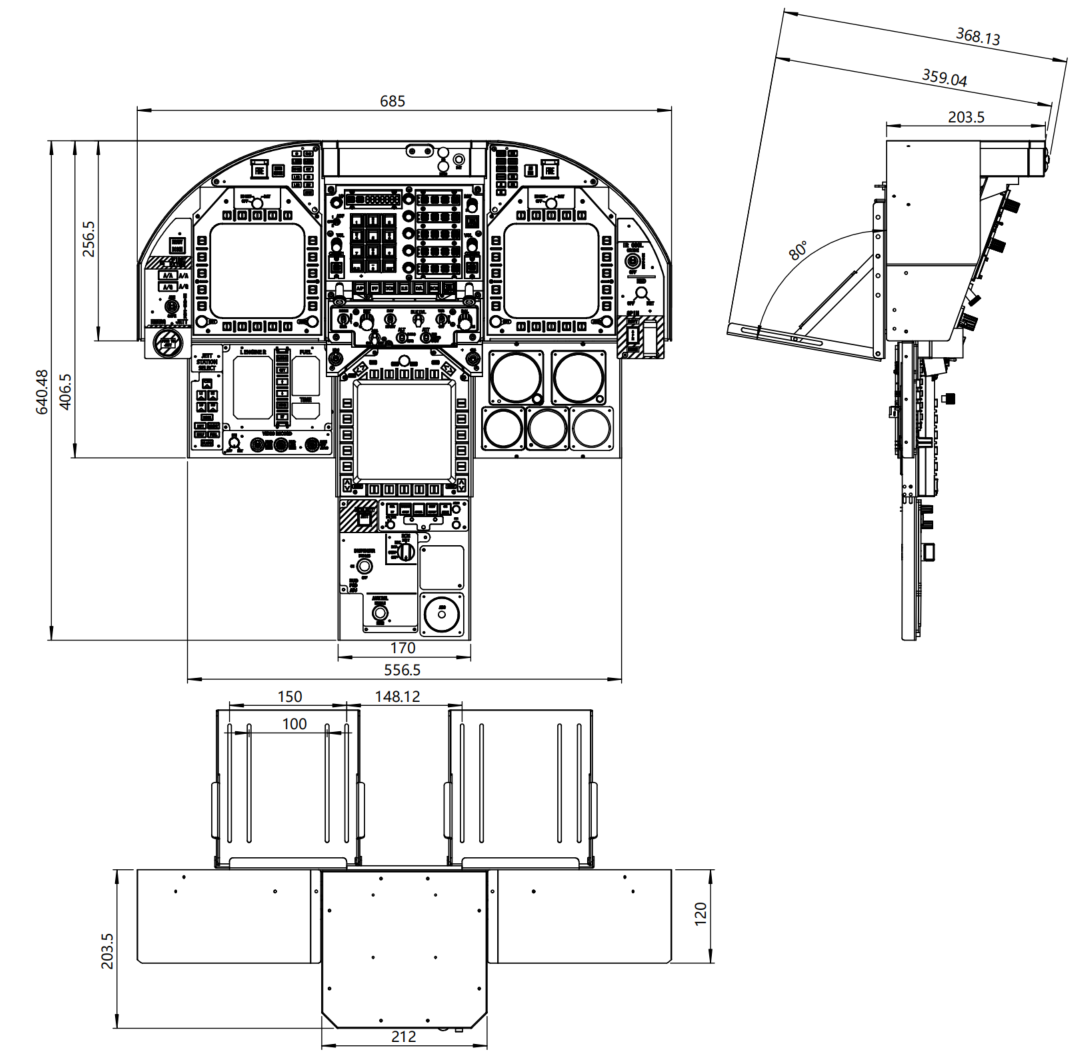

FA-18C MIP (Full) #

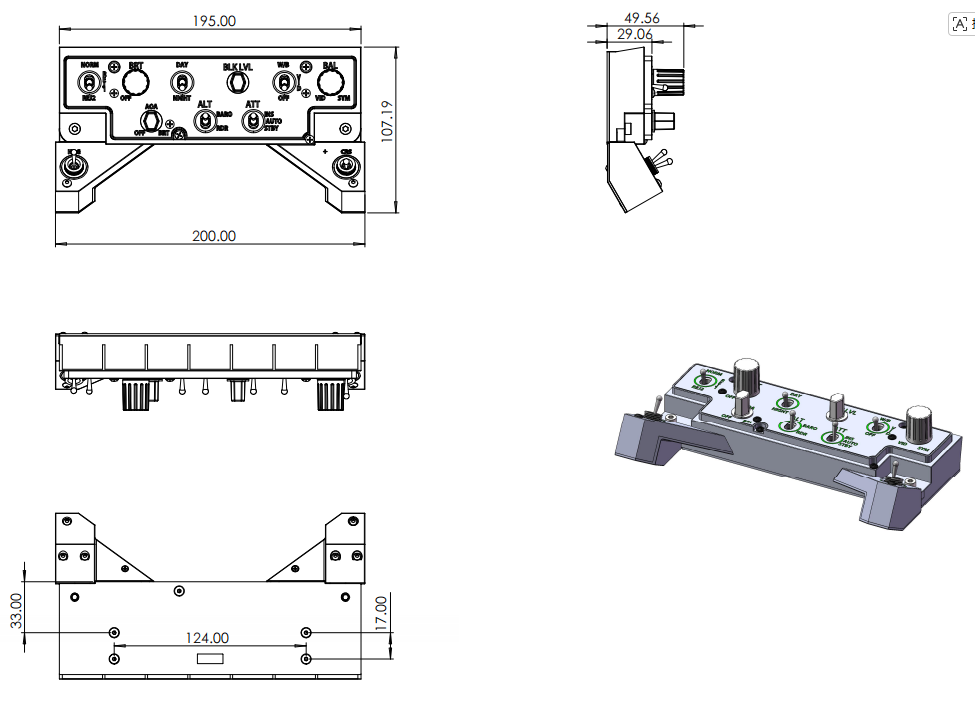

HUD Controller #

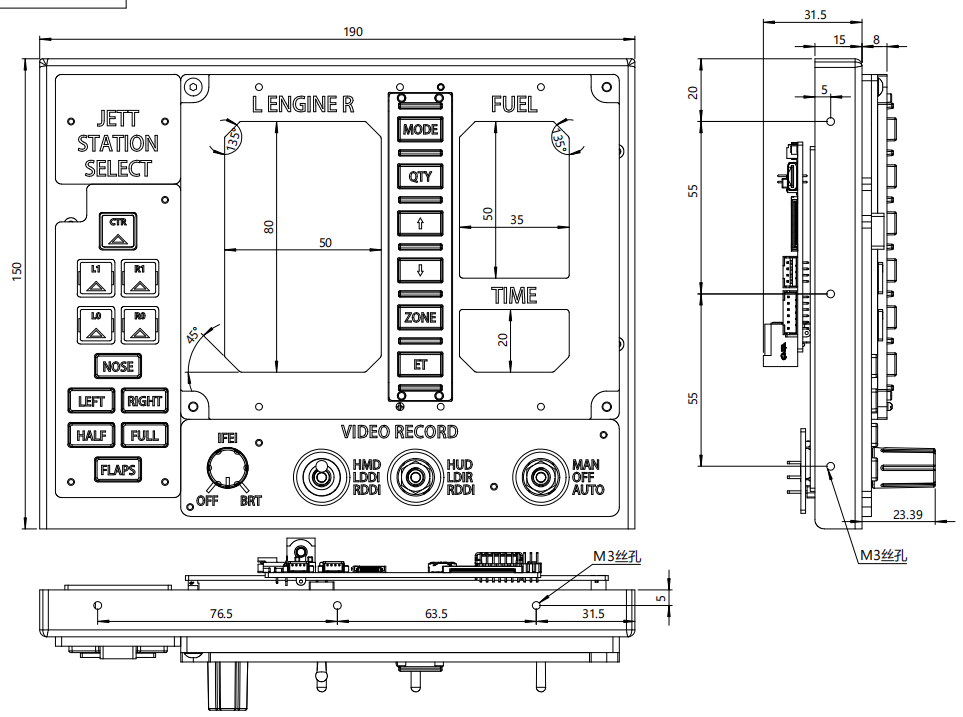

IFEI (Integrated Fuel/Engine Indicator) #

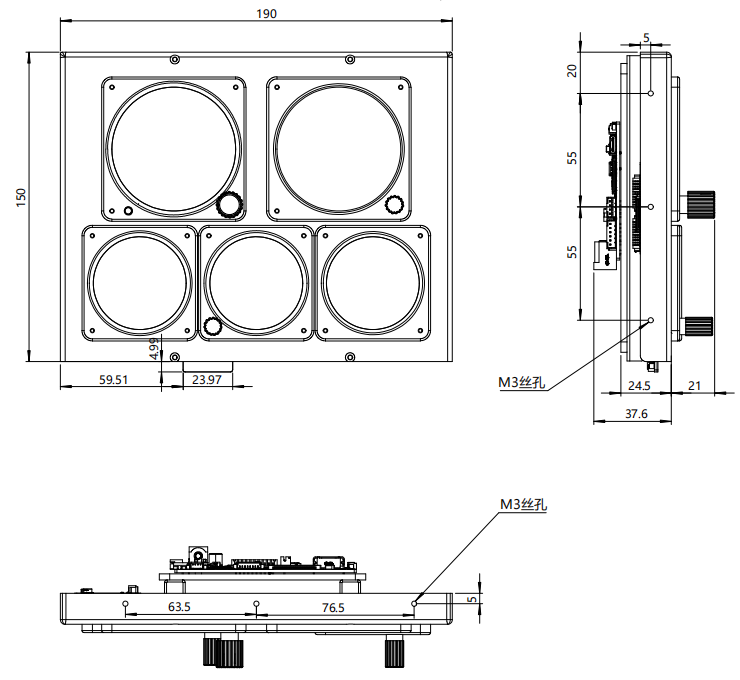

Standby Instrument Group #

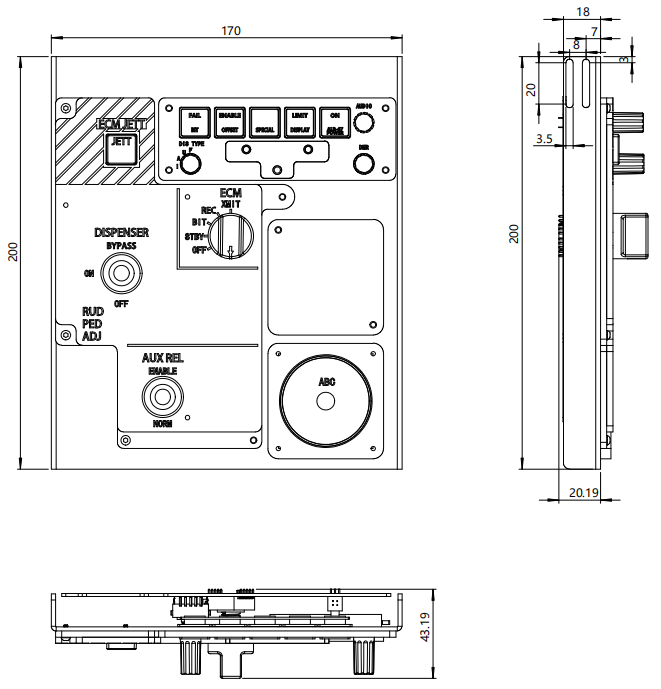

Lower Console Instrument Group #
Electrical Connection #
For AMPCD and DDI electrical connections, see AMPCD & DDI User Guide.
Driver Software #
Download the driver software: DCSCockpit
